How to fill background color with gradient of custom renderer?

Tags: #<Tag:0x00007f8b1cf544f8>
#1

I’m having problems trying to add a className to a cell working with custom renderer.

But It’s not working when first page loading, then when I scoll in sheets, it’s appear in custom style.
What can I do?

image.png903×599 29 KB

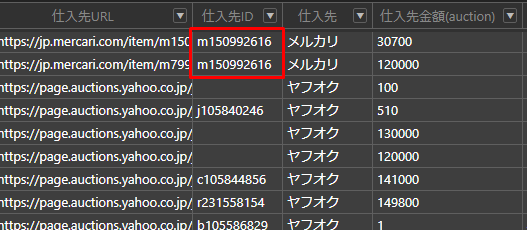

Screen when the page is first loaded with F5.

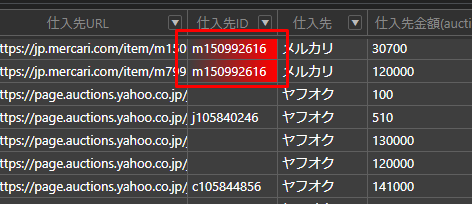

Screen after scrolling on the sheet.

How can I see it with the page loading?

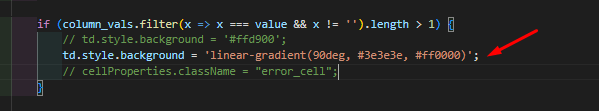

then, The following codes also do not work.


Thank you

#2

Hi @luigifabbri1021

Can you please prepare a code demo showing the issue? Or at least paste your configuration as a code text?

#3

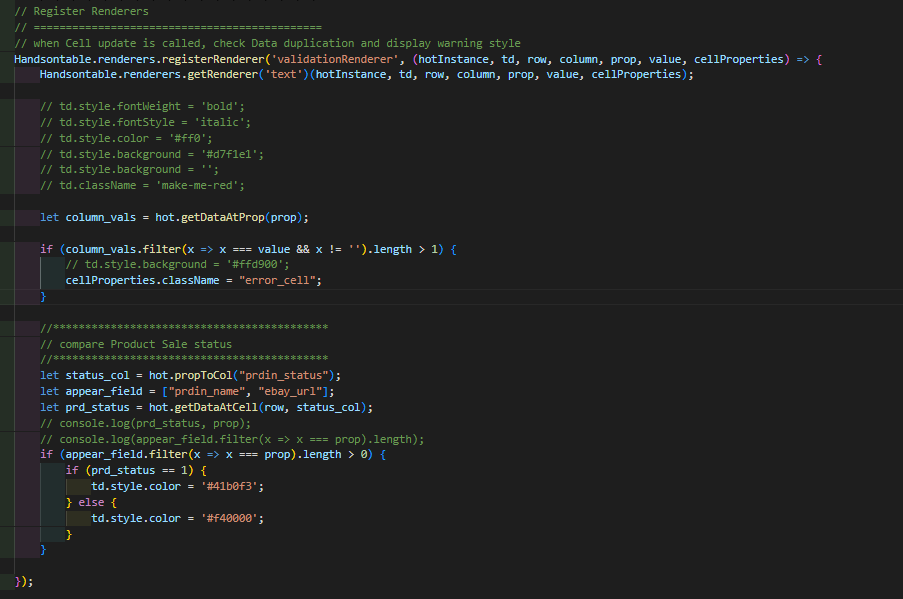

following code is my code.

let hot = new Handsontable(SheetGrid, {
    licenseKey: 'non-commercial-and-evaluation',
    startRows: 0,
    startCols: 22,
    manualColumnResize: true,
    columns: columnSettings,
});
let columnSettings = [
    { data: 'id', className: 'custom_cell' },
    { data: 'prd_uid' },
    { data: 'prd_mid', renderer: 'validationRenderer' },
    { data: 'prdin_name', renderer: 'validationRenderer' },
    { data: 'prdin_url', renderer: 'validationRenderer' },
    { data: 'prdin_id', renderer: 'validationRenderer' },
];

Handsontable.renderers.registerRenderer('validationRenderer', (hotInstance, td, row, column, prop, value, cellProperties) => {
    Handsontable.renderers.getRenderer('text')(hotInstance, td, row, column, prop, value, cellProperties);
    let column_vals = hot.getDataAtProp(prop);
    if (column_vals.filter(x => x === value && x != '').length > 1) {
        cellProperties.className = "error_cell";
    }
//style
.error_cell {
      background: linear-gradient(90deg, #3e3e3e 35%, #ff3738);
      color: #fff;
}

and, I have a test video.
https://drive.google.com/file/d/1L4hDKCWc9M8Nsb6sLrwpQKFZT8CaT1ep/view?usp=sharing

#4

here’s a code demo that I’ve made https://jsfiddle.net/luigi1021/8aw2zp7x/39/

#5

Hi @luigifabbri1021

Thank you. Does this solution solves your problem?

https://jsfiddle.net/aszymanski/1j5smx0k/

Sometimes you have to re-render the table to see all the changes.

#6

Thanks, currently, jsfiddle code have no error.
but, in my test video, custom renderer is acting strangely.
can u check in video, please?

and, I have a test video.
https://drive.google.com/file/d/1L4hDKCWc9M8Nsb6sLrwpQKFZT8CaT1ep/view?usp=sharing

when the page is first loaded with F5, custom renderer function is not working.
However, when scrolling, the style is applied to the cell.
this not appear in jsfiddle.

#7

Hi @luigifabbri1021

Scrolling forces the table to re-render, that’s why your styling appears then. My solution re-render the whole table after the initialization.

#8

Oh, thanks,
I didn’t see the last code…

I fixed my error.
Thanks for your help.
